Products description
Pick up in North Las Vegas, you are welcome to visit our showroom.
As shipping costs are different for all 48 states, Click here to find out the shipping costs for your state.
Tire changer with pneumatically operated tilting column and intergrated air-booster in the clamping jaws system for standard-, low profile-tire and runflat-tire. TW X-31 without assistant arm (upgraded at any time).
Product presentation
Assembly
Features
- Top built quality with CE- certificate
- Manufactured to ISO 9001

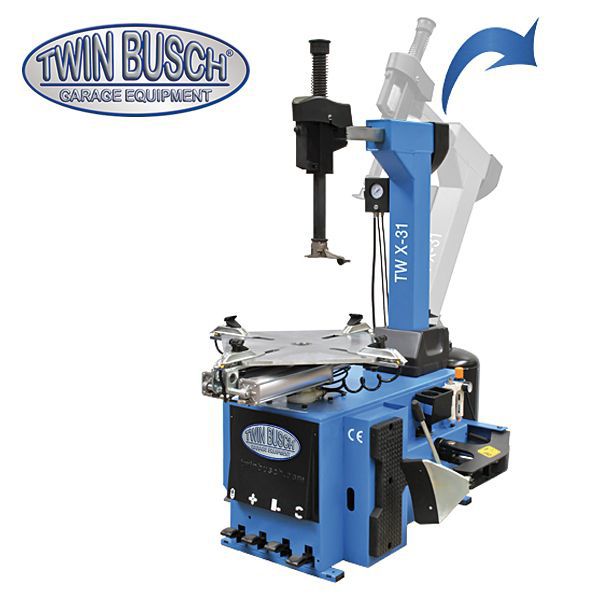

- Pneumatically operated tilting column
- Top qualitiy and massive construcion
- Wheel rim protective mounting
- Pneumatically lock of mount head

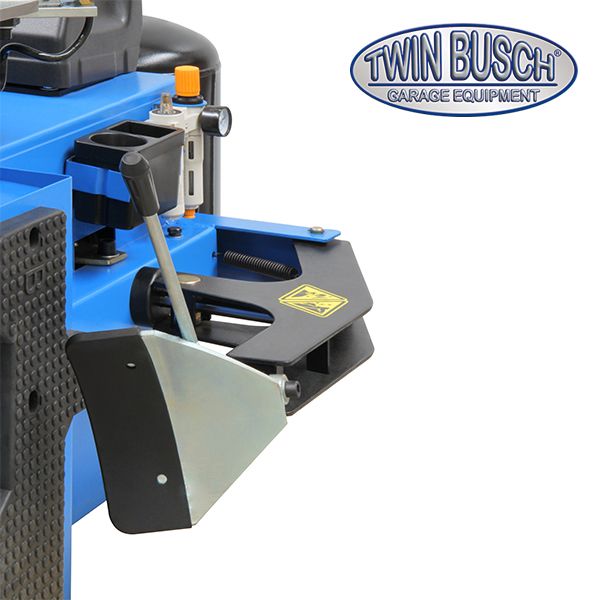

- Powerful bead breaker (5500 lbs.)
- Self centered 4 clamping jaw system
- 26 ” large turntable for cars and vans

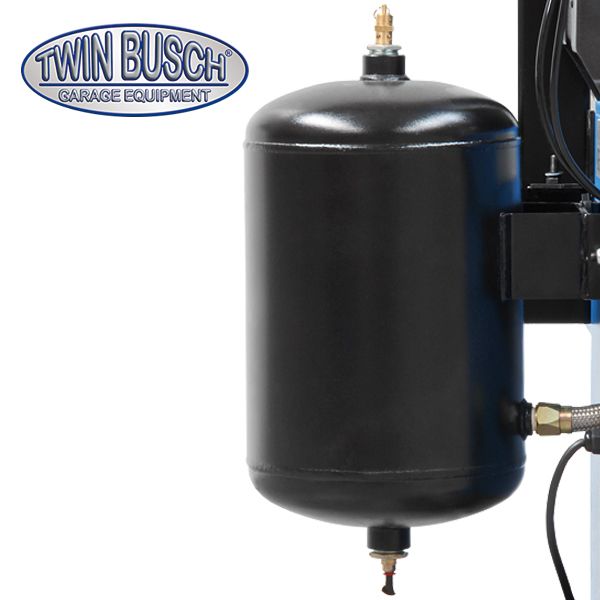

- Intergrated air-booster in the clamping jaw system
- Plastic protectors for demount head / jaws plastic gliders to protect rims
- Powerful E-Motor for supply- and return lines
- Clamping jaws made of special steel
Technical Data
Outside clamping
12“ - 24“
Inside clamping
14“ - 26“
Wheel diameter (max.)
45"
Wheel width (max.)
16"
Bead breaker force
5511.56 lbs.
Air supply
116.03 - 145.03 psi
Power supply
110 V | 1 Ph
Motor power
1.5 hp
Weight
542 lbs
Noise level
< 70 dB

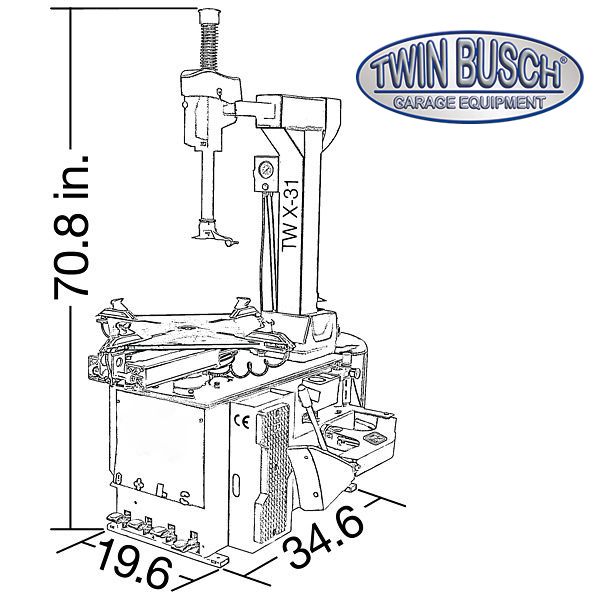

TW X-31 - Overview

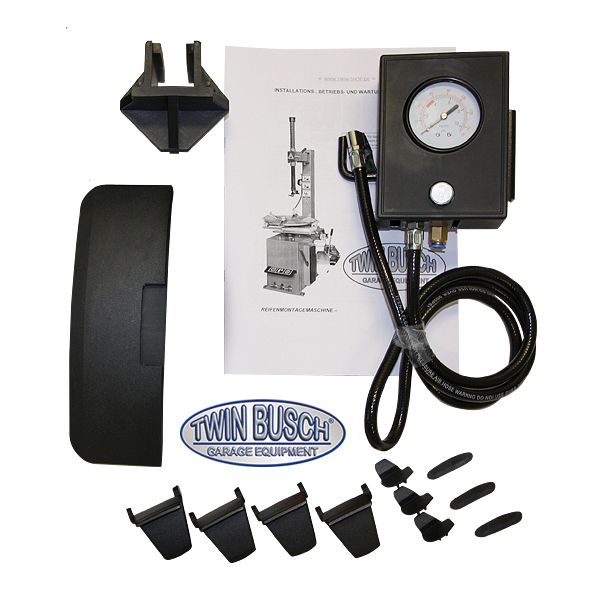

Delivery contents

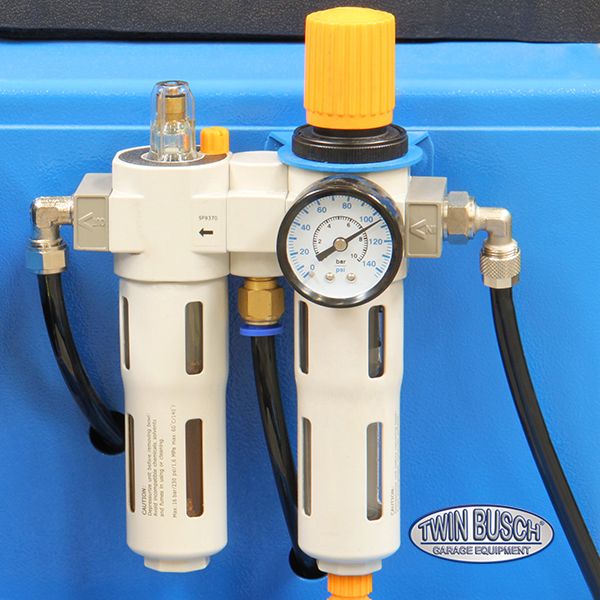

- Tire changer with a maintenance unit

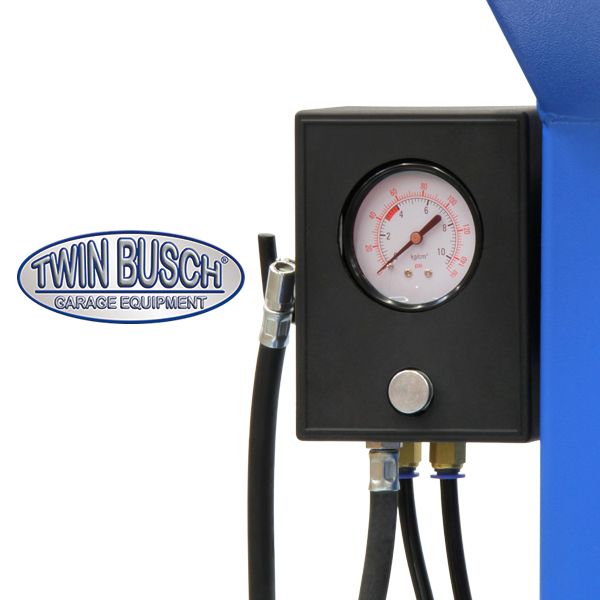

- Inflating gun and bead lever
- Clamp protector for clamping jaws system (4 items)
- 3 set plastic protector for mount and demount head
- Operating and maintenance instructions
- CE-certificate
- Different inserts for tire pressing head
Shipping information
We always ship products out the same or following day unless otherwise discussed with our client.
For West Coast states expect a shipping time of approx. 3-5 business days, for Central states 5-7 business days, and for East Coast states 7-10 business days.
Shipping dimensions and weight
excl. VAT and Shipping costs.
Shipping costs for Tire changers (excluding islands)
| State | Zip Code | Price |
|---|---|---|
| WA- Washington | 98000-99499 | $279,00 |
| OR- Oregon | 97000-97999 | $229,00 |
| CA- California | 90000-96699 | $239,00 |
| NV- Nevada | 88900-89999 | $229,00 |
| MT- Montana | 59000-59999 | $229,00 |
| ID- Idaho | 83200-83999 | $229,00 |
| WY- Wyoming | 82000-83199 | $229,00 |
| UT- Utah | 84000-84999 | $229,00 |
| CO- Colorado | 80000-81999 | $229,00 |
| AZ- Arizona | 85000-86999 | $229,00 |
| NM- New Mexico | 87000-88899 | $229,00 |
| ND- North Dakota | 58000-58999 | $259,00 |
| SD- South Dakota | 57000-57999 | $249,00 |
| NE- Nebraska | 68000-69999 | $229,00 |
| KS- Kansas | 66000-67999 | $229,00 |
| OK- Oklahoma | 73000-74999 | $229,00 |
| TX- Texas | 75000-79999 | $229,00 |
| MN- Minnesota | 55000-56997 | $239,00 |
| IA- Iowa | 50000-52999 | $239,00 |
| MO- Missouri | 63000-65999 | $229,00 |
| AR- Arkansas | 71600-72999 | $229,00 |
| LA- Luisiana | 70000-71599 | $239,00 |
| WI- Wisconsin | 53000-54999 | $249,00 |
| IL- Illinois | 60000-62999 | $239,00 |
| MS- Mississippi | 38600-39799 | $239,00 |
| TN- Tennessee | 37000-38599 | $239,00 |
| AL- Alabama | 35000-36999 | $249,00 |
| MI- Michigan | 48000-49999 | $269,00 |
| IN- Indiana | 46000-47099 | $249,00 |
| KY- Kentucky | 40000-42999,47100-47999 | $249,00 |
| OH- Ohio | 43000-45999 | $259,00 |
| GA- Georgia | 30000-31999,39800-39999 | $259,00 |
| FL- Florida | 32000-34999 | $359,00 |
| SC- South Carolina | 29000-29999 | $269,00 |
| NC- North Carolina | 27000-28999 | $289,00 |
| VA- Virginia | 20100-20199,22000-24699 | $289,00 |
| WV- West Virginia | 24700-26999 | $279,00 |
| PA- Pennsylvania | 15000-19700 | $289,00 |
| NY- New York | 10501-10701,10706-11000,12007-14999 | $299,00 |
| ME- Maine | 3900-4999 | $339,00 |
| VT- Vermont | 5000-5500,5600-5999 | $329,00 |
| NH- New Hampshire | 3000-3899 | $329,00 |
| MA- Massachusetts | 1001-2800,5501-5599 | $299,00 |
| RI- Rhode Island | 2801-2999 | $299,00 |
| CT- Connecticut | 6000-6389,6391-6999 | $299,00 |
| NJ- New Jersey | 7000-10000 | $309,00 |
| DE- Delaware | 19701-19999 | $299,00 |
| MD- Maryland | 20600-21999 | $299,00 |
optionally available:
TW X-31H
- Suitable for TW X-31
Shipping time: 4 Weeks
TW X-KETTE
- For mounting and demounting UHP and run-flat tires
- It holds the tire on the rim at 4 points
Shipping time: 3-10 Days
TW X-ROLL
- Fits on all Tire changers
Shipping time: 3-10 Days
TW X-WUL
- Helps mount wide tires with hard side walls
Shipping time: 3-10 Days
