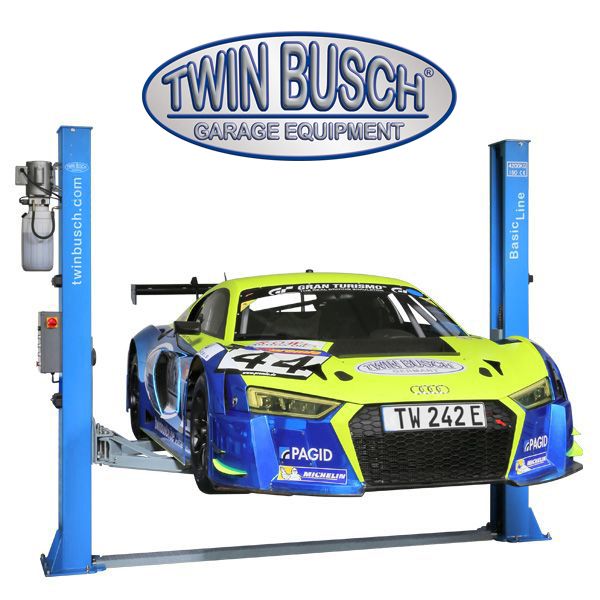

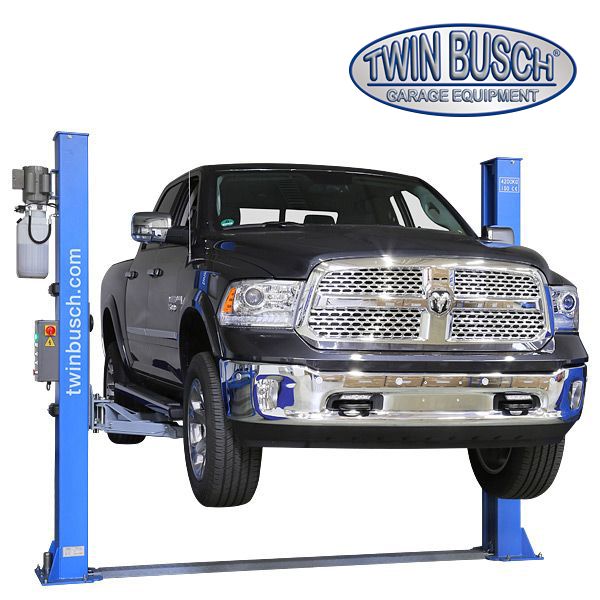

Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.

Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
For a larger view click on the thumbnail
$ 2,599.00
Shipping time: 3-10 Days
Product no.: TW242E
GTIN/EAN: 0802022269430

Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.
Twin Busch ® BASIC-Line Lift 9200 lbs. - Automatic-Unlock.


  • Details
  • Shipping
  • Accessories

Products description

Pick up in North Las Vegas, you are welcome to visit our showroom.



As shipping costs are different for all 48 states, Click here to find out the shipping costs for your state.




The ideal starter model with a TOP price - performance ratio.

The Basic Line lift in electromagnetic version 9200 lbs. load capacity.
With automatic unlockable safety latches, adjustable lifting pads, high-quality Powder coating and flat bridge plate (only 1.3 in.). With the electromagnetic Basic Line you can lift everything from Smart to vans.

icon Product presentation

icon Assembly

icon Features

  • 1A Quality built with CE-Certificate
  • Manufactured in accordance to ISO 9001
  • Automatic safety-lock release

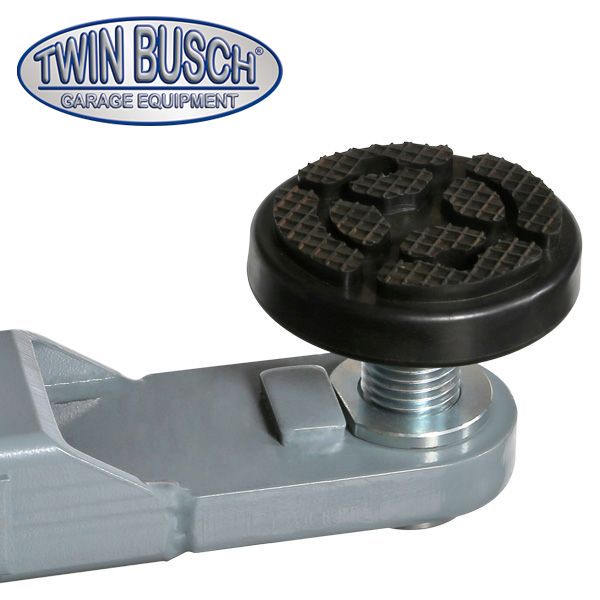

  • Rotary lifting plates with thread protection
  • Emergency lowering in case of power cut
  • High quality special profile supporting posts

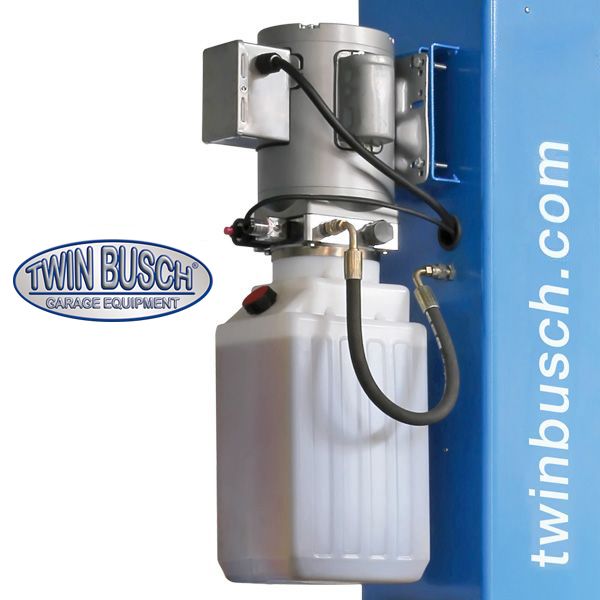

  • 2 Hydraulic cylinders for powerful lifting and lowering

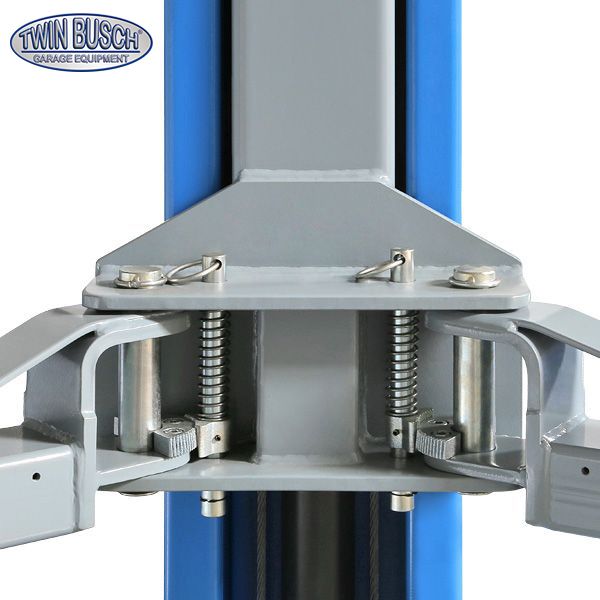

  • Automatic arm-locking system
  • Quality powder coating
  • Steel cable synchronization
  • Extra flat telescopic lifting arms for sport cars

icon Technical Data

Lifting capacity
9200 lbs
Max lifting height
74.8 in/Ad 2050
Low lifting point
3.78 in
Lifting, lowering time (approx.)
45/30 sec.
Power supply
110 V | 1 Ph
Motor power
3 hp
Fuse protection
16 A
Weight
1322 lbs

icon TW 242 E - Overview

Overview

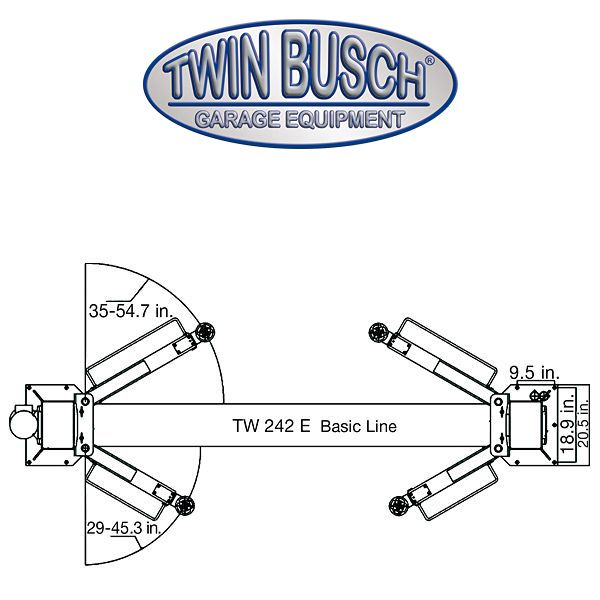

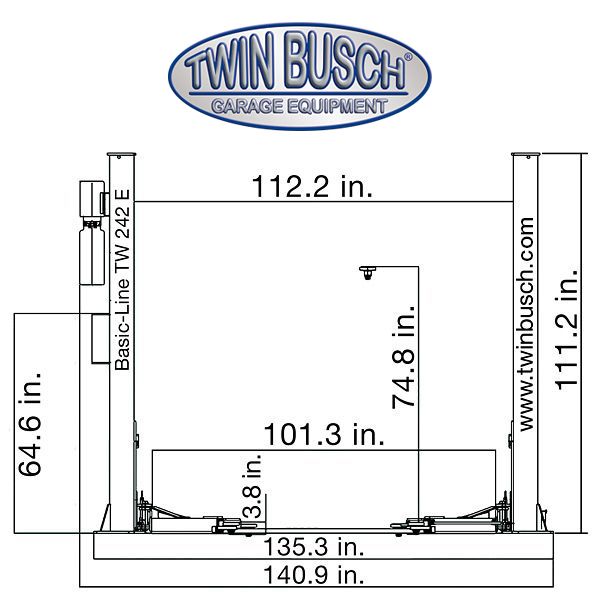

icon Product dimensions

Product dimensions

icon Delivery contents

  • Lift including the control unit
  • Heavy duty anchor bolts (10 pcs.)
  • Rubber door protectors | English instruction manual
  • Examination book and CE-Certificate
  • Vehicle not included

icon Shipping information

  • The lift will arrive in a transport frame.

We always ship products out the same or following day unless otherwise discussed with our client.
For West Coast states expect a shipping time of approx. 3-5 business days, for Central states 5-7 business days, and for East Coast states 7-10 business days.

icon Shipping dimensions and weight

Product dimensions
excl. VAT and Shipping costs.

Shipping costs for TW242A and TW242E (excluding islands)


StateZip CodePrice
WA- Washington98000-99499$309,00
OR- Oregon97000-97999$249,00
CA- California90000-96699$279,00
NV- Nevada88900-89999$229,00
MT- Montana59000-59999$289,00
ID- Idaho83200-83999$229,00
WY- Wyoming82000-83199$259,00
UT- Utah84000-84999$229,00
CO- Colorado80000-81999$239,00
AZ- Arizona85000-86999$229,00
NM- New Mexico87000-88899$229,00
ND- North Dakota58000-58999$329,00
SD- South Dakota57000-57999$279,00
NE- Nebraska68000-69999$269,00
KS- Kansas66000-67999$279,00
OK- Oklahoma73000-74999$279,00
TX- Texas75000-79999$249,00
MN- Minnesota55000-56997$309,00
IA- Iowa50000-52999$299,00
MO- Missouri63000-65999$289,00
AR- Arkansas71600-72999$289,00
LA- Luisiana70000-71599$309,00
WI- Wisconsin53000-54999$319,00
IL- Illinois60000-62999$309,00
MS- Mississippi38600-39799$309,00
TN- Tennessee37000-38599$299,00
AL- Alabama35000-36999$329,00
MI- Michigan48000-49999$349,00
IN- Indiana46000-47099$319,00
KY- Kentucky40000-42999,47100-47999$309,00
OH- Ohio43000-45999$329,00
GA- Georgia30000-31999,39800-39999$329,00
FL- Florida32000-34999$469,00
SC- South Carolina29000-29999$349,00
NC- North Carolina27000-28999$369,00
VA- Virginia20100-20199,22000-24699$379,00
WV- West Virginia24700-26999$349,00
PA- Pennsylvania15000-19700$379,00
NY- New York10501-10701,10706-11000,12007-14999$389,00
ME- Maine3900-4999$439,00
VT- Vermont5000-5500,5600-5999$429,00
NH- New Hampshire3000-3899$429,00
MA- Massachusetts1001-2800,5501-5599$389,00
RI- Rhode Island2801-2999$389,00
CT- Connecticut6000-6389,6391-6999$379,00
NJ- New Jersey7000-10000$409,00
DE- Delaware19701-19999$389,00
MD- Maryland20600-21999$379,00

optionally available:

Reinforcement plates for the series TW 236/242
TW 242 GPR10
  • Fits TW 242 A, TW 242 E und TW 242 PE B4.3
  • The minimum requirements regarding concrete depth are reduced by 1.50”
Shipping time: 3-10 Days
$ 699.00
Details1 x 'Reinforcement plates for the series TW 236/242' order
Storage shelf (Medium tool tray) for the foot protection bar
TW 242 TT-2
  • Fits short front Supporting arms of the TW 242 A, TW 242 E, TW 242 PE, TW 250 B4.5
  • Practical screw and tool tray
Shipping time: 4 Weeks
$ 7.99
Details1 x 'Storage shelf (Medium tool tray) for the foot protection bar' order
Storage tray (Large tool tray) for the foot protection bar
TW 236 PE TT-3
  • Fits short front Supporting arms of the TW 242 A, TW 242 E, TW 242 PE, TW 250 and TW 250 B4.5.
  • Practical screw and tool tray
Shipping time: 4 Weeks
$ 8.99
Details1 x 'Storage tray (Large tool tray) for the foot protection bar' order
