Products description
Pick up in North Las Vegas, you are welcome to visit our showroom.
As shipping costs are different for all 48 states, Click here to find out the shipping costs for your state.

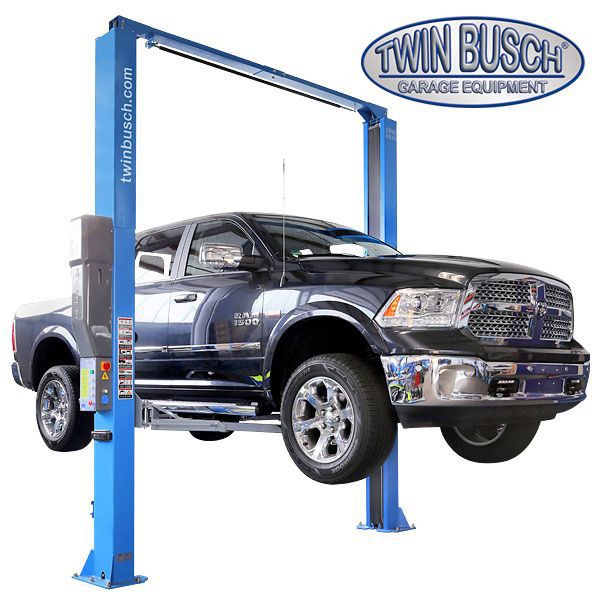

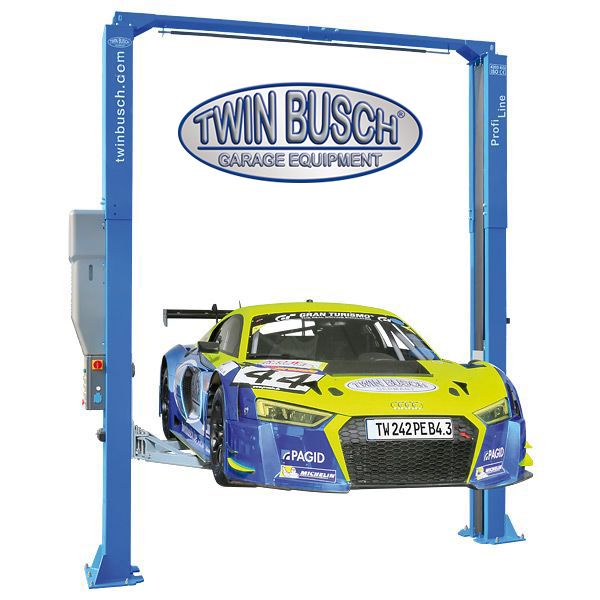

Profi-Line - clear floor.
The Profi - Line lift has an automatic safety lock release system, height adjustable lifting pads, transporter adapters, clear floor drive through and an automatic limit switch, which cuts of the power if a vehicle reaches the height limit.

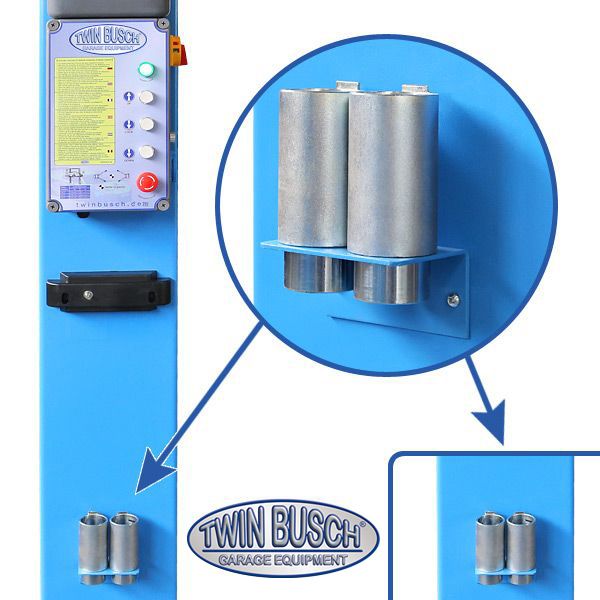

On each post you have a practical holder bracket for the extension adapters.
Product presentation
Assembly
Features
- Top built quality with CE-certificate
- Manufactured according to ISO 9001
- Column cover

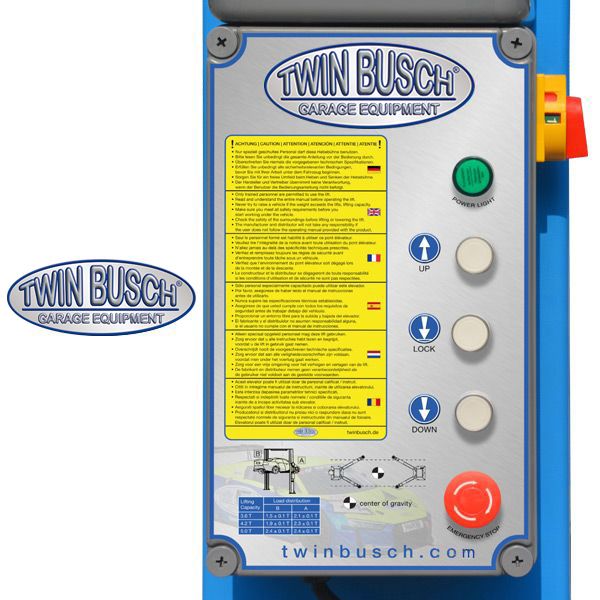

- Electrical release
- Special rolled section column
- 2 hydraulic cylinders for strong lifting and lowering

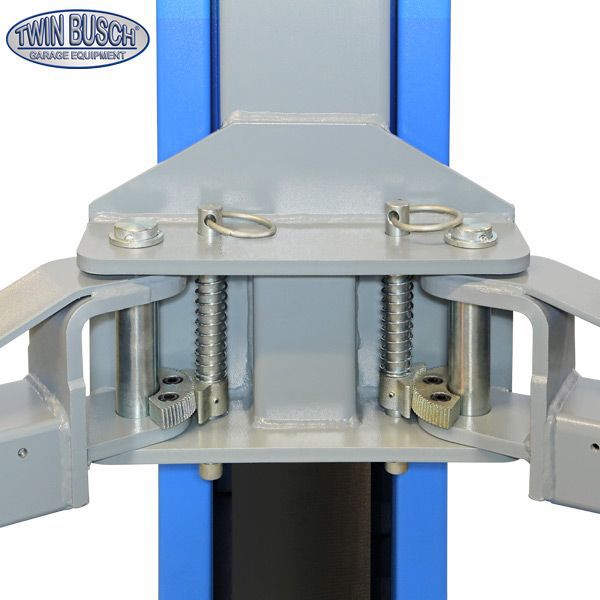

- Automatic arm lock device
- Synchronization through steel ropes
- 2 stage telescopic arms
- Lift height 14.1 ft.
- Practical storage bracket for two extension adapters

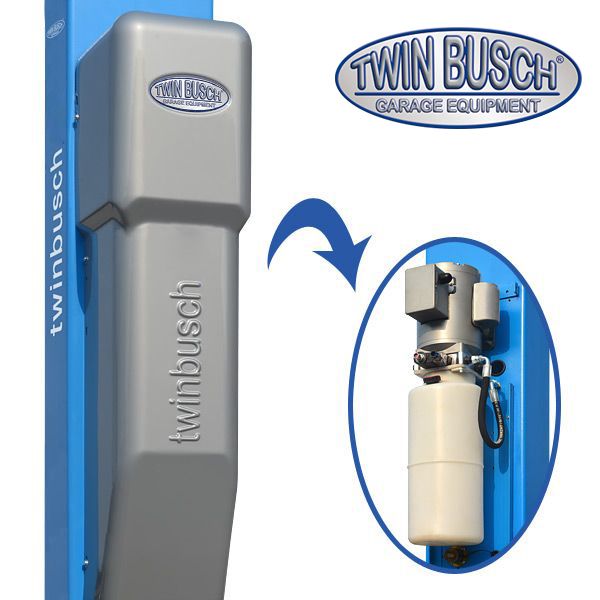

- NEW: Motor-Cover included
(Stylish design, dust protection and noise reduction)
Technical Data
Lifting capacity
9200 lbs
Max lifting height
74.8 in/Ad 2080
Low lifting point
3.78 in
Lifting, lowering time (approx.)
45/30 sec.
Power supply
110 V | 1 Ph
Motor power
3 hp
Fuse protection
16 A
Weight
1499.14 lbs
TW 242 PE B4.3 - Overview

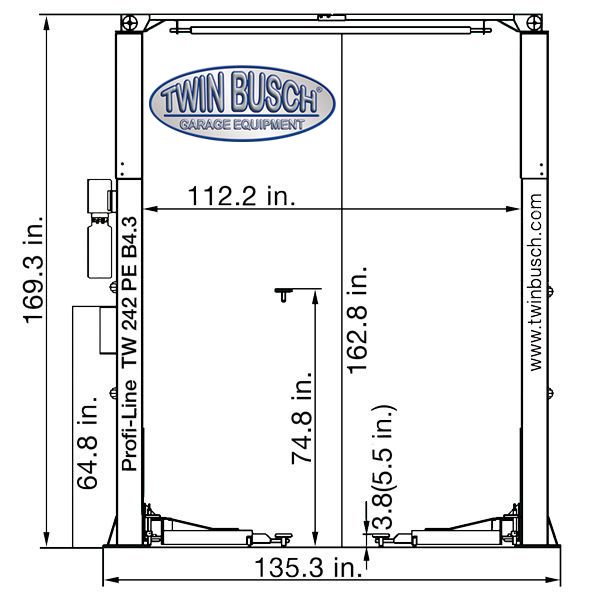

Product dimensions
Delivery contents
- Lift including the control unit and Motor-Cover
- Height adapter
- Bracket for extension adapter
- Extension bolts
- Door protection
- Operating and maintenance instructions
- CE-Certificate
- Oil not included
- Vehicle not included
Shipping information
- The lift will arrive in a transport frame.
We always ship products out the same or following day unless otherwise discussed with our client.
For West Coast states expect a shipping time of approx. 3-5 business days, for Central states 5-7 business days, and for East Coast states 7-10 business days.

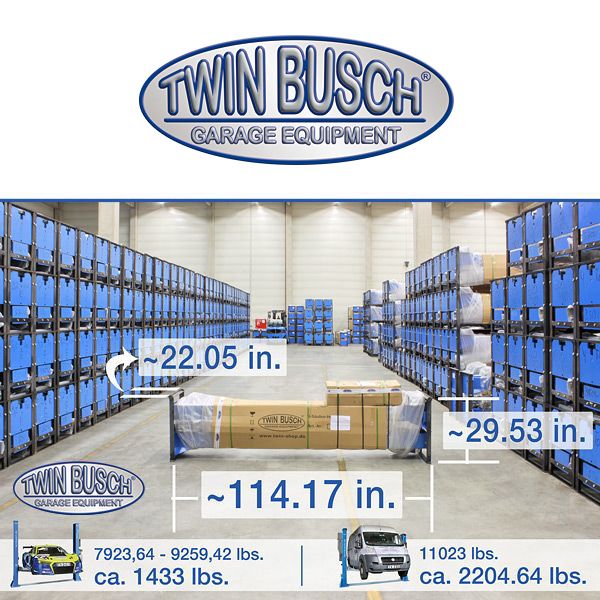

Shipping dimensions and weight
excl. VAT and Shipping costs.
Shipping costs for TW 242 PE B4.3 (excluding islands)
| State | Zip Code | Price |
|---|---|---|
| WA- Washington | 98000-99499 | $359,00 |
| OR- Oregon | 97000-97999 | $299,00 |
| CA- California | 90000-96699 | $329,00 |
| NV- Nevada | 88900-89999 | $279,00 |
| MT- Montana | 59000-59999 | $339,00 |
| ID- Idaho | 83200-83999 | $279,00 |
| WY- Wyoming | 82000-83199 | $309,00 |
| UT- Utah | 84000-84999 | $279,00 |
| CO- Colorado | 80000-81999 | $289,00 |
| AZ- Arizona | 85000-86999 | $279,00 |
| NM- New Mexico | 87000-88899 | $279,00 |
| ND- North Dakota | 58000-58999 | $379,00 |
| SD- South Dakota | 57000-57999 | $329,00 |
| NE- Nebraska | 68000-69999 | $319,00 |
| KS- Kansas | 66000-67999 | $329,00 |
| OK- Oklahoma | 73000-74999 | $329,00 |
| TX- Texas | 75000-79999 | $299,00 |
| MN- Minnesota | 55000-56997 | $359,00 |
| IA- Iowa | 50000-52999 | $349,00 |
| MO- Missouri | 63000-65999 | $339,00 |
| AR- Arkansas | 71600-72999 | $339,00 |
| LA- Luisiana | 70000-71599 | $359,00 |
| WI- Wisconsin | 53000-54999 | $369,00 |
| IL- Illinois | 60000-62999 | $359,00 |
| MS- Mississippi | 38600-39799 | $359,00 |
| TN- Tennessee | 37000-38599 | $349,00 |
| AL- Alabama | 35000-36999 | $379,00 |
| MI- Michigan | 48000-49999 | $399,00 |
| IN- Indiana | 46000-47099 | $369,00 |
| KY- Kentucky | 40000-42999,47100-47999 | $359,00 |
| OH- Ohio | 43000-45999 | $379,00 |
| GA- Georgia | 30000-31999,39800-39999 | $379,00 |
| FL- Florida | 32000-34999 | $519,00 |
| SC- South Carolina | 29000-29999 | $399,00 |
| NC- North Carolina | 27000-28999 | $419,00 |
| VA- Virginia | 20100-20199,22000-24699 | $429,00 |
| WV- West Virginia | 24700-26999 | $399,00 |
| PA- Pennsylvania | 15000-19700 | $429,00 |
| NY- New York | 10501-10701,10706-11000,12007-14999 | $439,00 |
| ME- Maine | 3900-4999 | $489,00 |
| VT- Vermont | 5000-5500,5600-5999 | $479,00 |
| NH- New Hampshire | 3000-3899 | $479,00 |
| MA- Massachusetts | 1001-2800,5501-5599 | $439,00 |
| RI- Rhode Island | 2801-2999 | $439,00 |
| CT- Connecticut | 6000-6389,6391-6999 | $429,00 |
| NJ- New Jersey | 7000-10000 | $459,00 |
| DE- Delaware | 19701-19999 | $439,00 |
| MD- Maryland | 20600-21999 | $429,00 |
optionally available:
TW 242 GPR10
- Fits TW 242 A, TW 242 E und TW 242 PE B4.3
- The minimum requirements regarding concrete depth are reduced by 1.50”
Shipping time: 3-10 Days
TW 242 TT-1
- Fits short front Supporting arms of the TW 236 PE and TW 236 PE B3.9
- Practical screw and tool tray
Shipping time: 3-10 Days
TW 242 TT-2
- Fits short front Supporting arms of the TW 242 A, TW 242 E, TW 242 PE, TW 250 B4.5
- Practical screw and tool tray
Shipping time: 4 Weeks
TW 236 PE TT-3
- Fits short front Supporting arms of the TW 242 A, TW 242 E, TW 242 PE, TW 250 and TW 250 B4.5.
- Practical screw and tool tray
Shipping time: 4 Weeks
